Monitoring system for quality control of the correctness of the installation of UV lamps

Implementation of a monitoring system that will allow for a more accurate and faster quality control of the correctness of the installation of UV lamps - this was the task set for us by one of Europe’s largest lighting manufacturers.

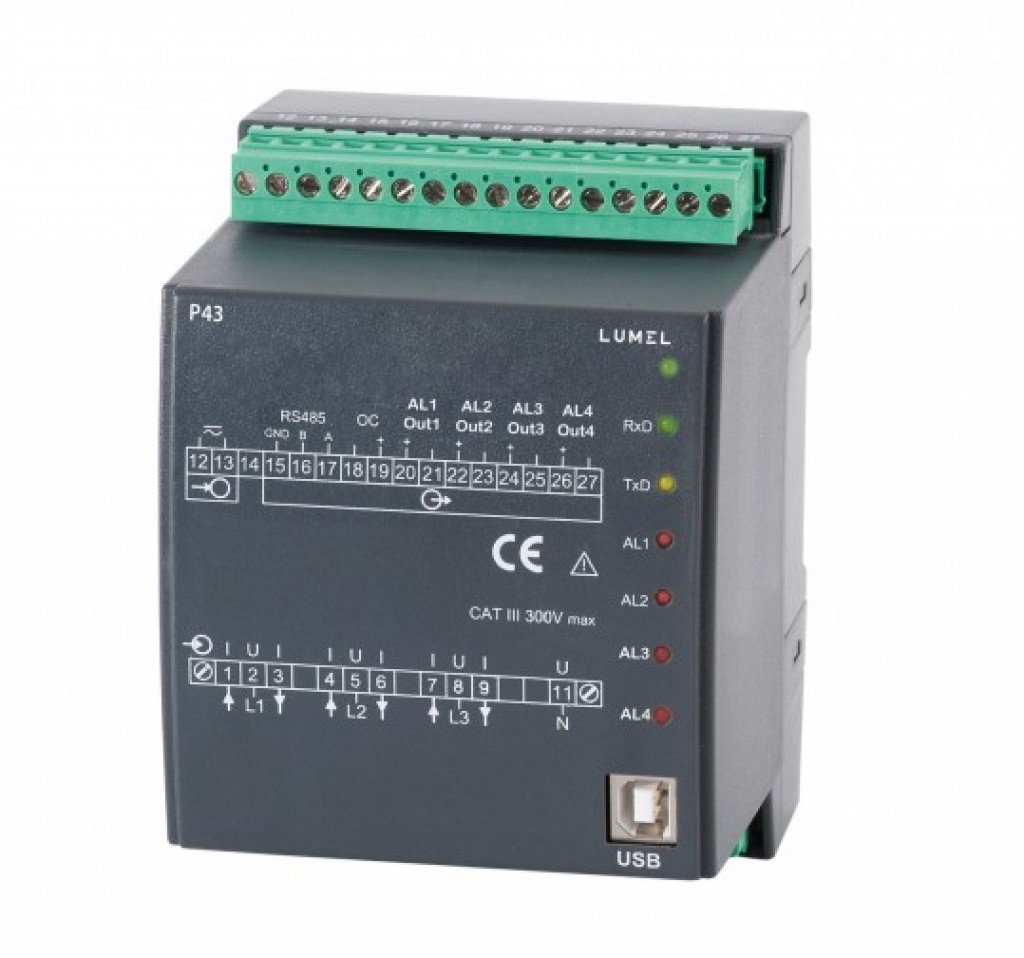

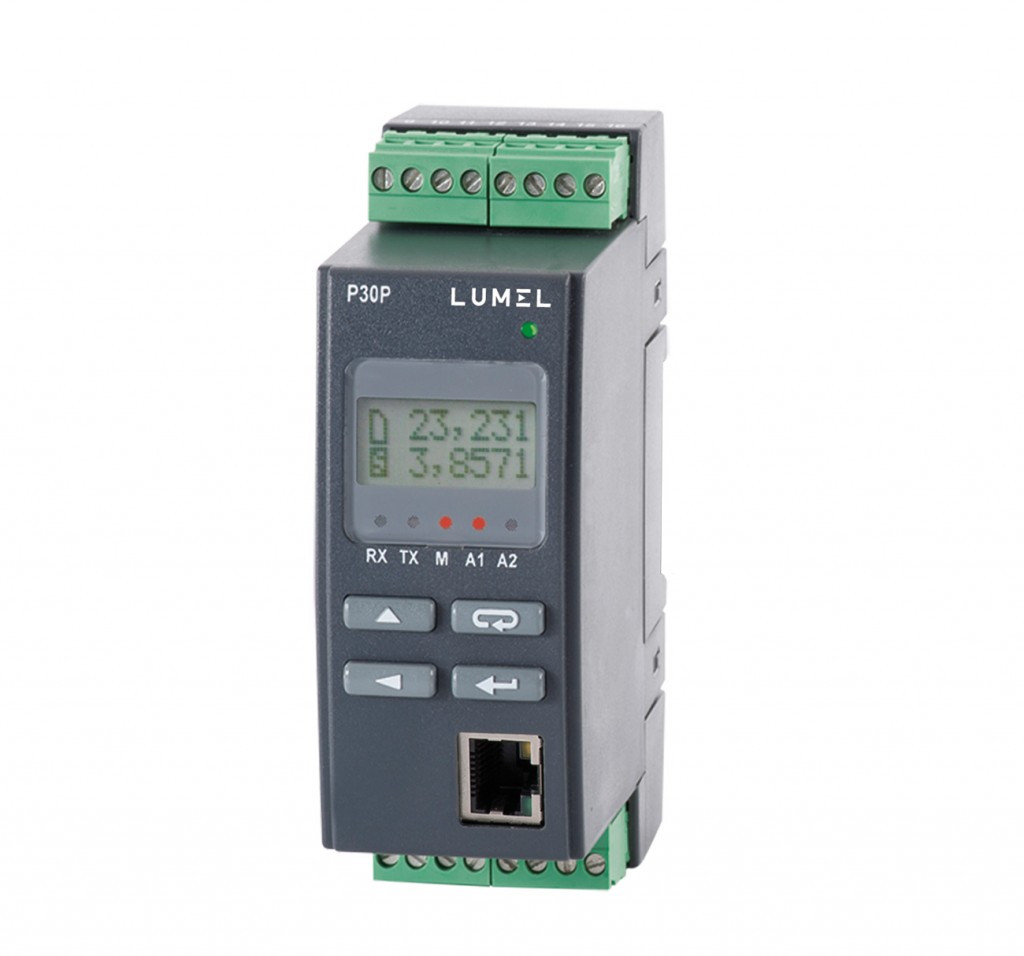

To accomplish this task, we used Lumel P30P and P43 transducers and Scada Promotic software.

Zur Partnerzone

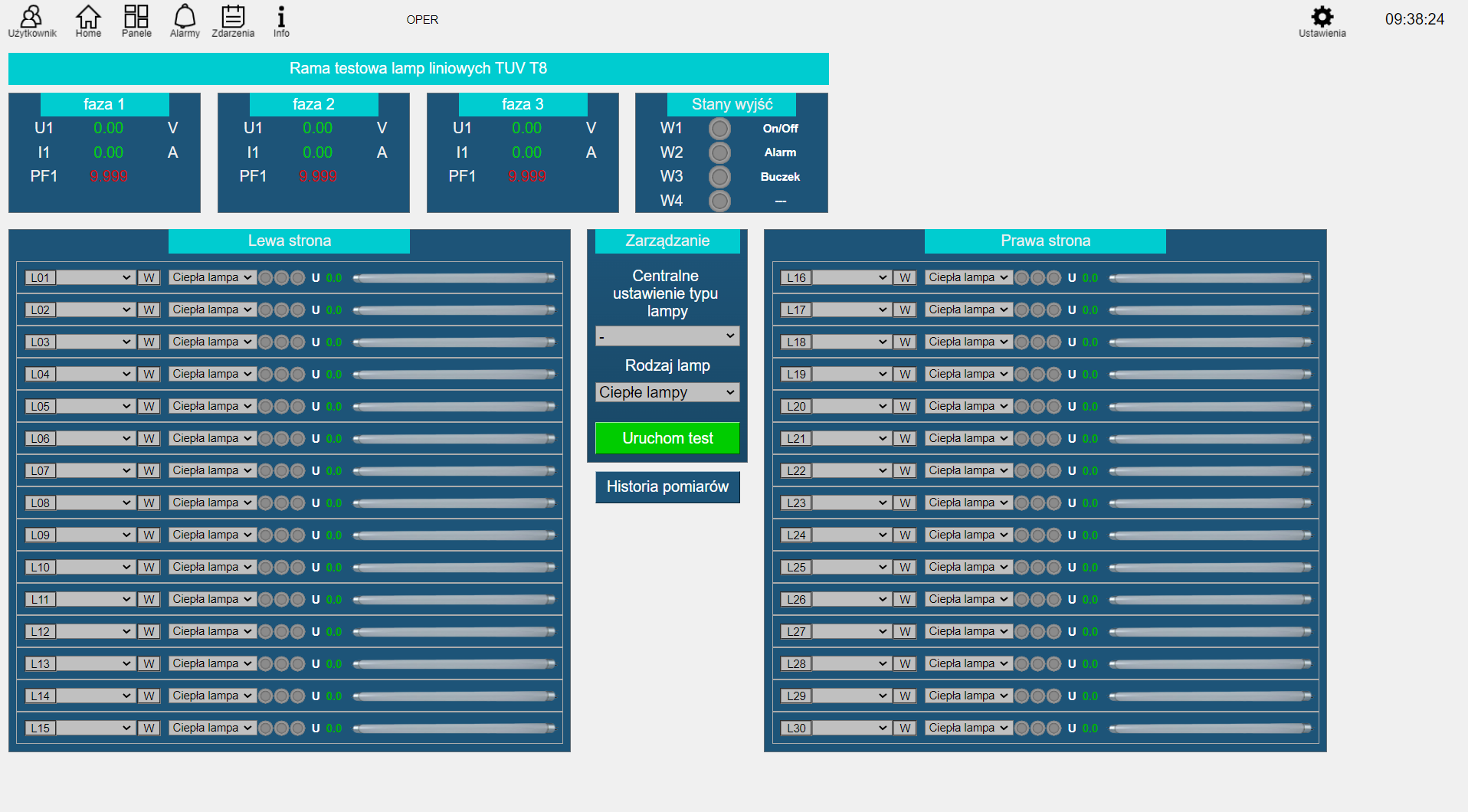

✅ Our system automatically tests the efficiency of a set of 30 lamps placed in special test frames based on the measurements of currents, voltages and power from converters.
In addition, the process operator, depending on the type of lamp, has additional options:
✅ selection of the type of test to be performed
✅ assigning a unique test number
✅ archiving the process with a 1-second record and a test result marker
✅ archiving the date and time of the start and end of the test and the values of the measured parameters along with the time courses of the lamp’s electrical parameters.

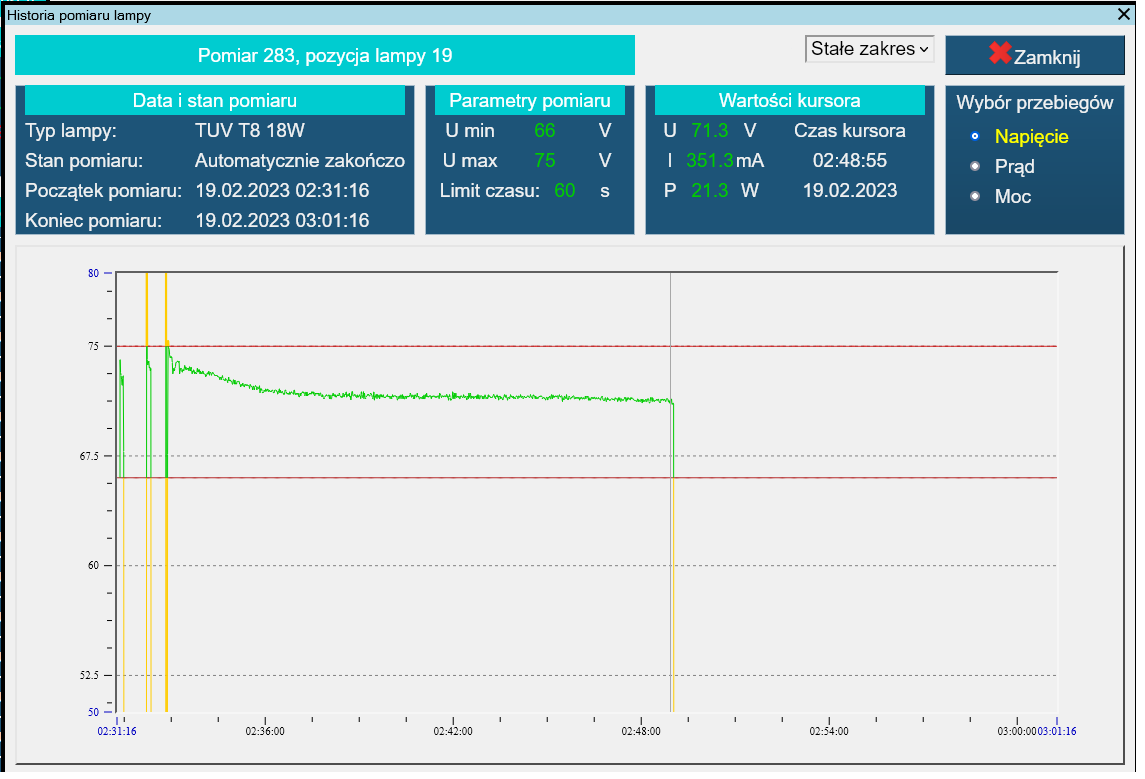

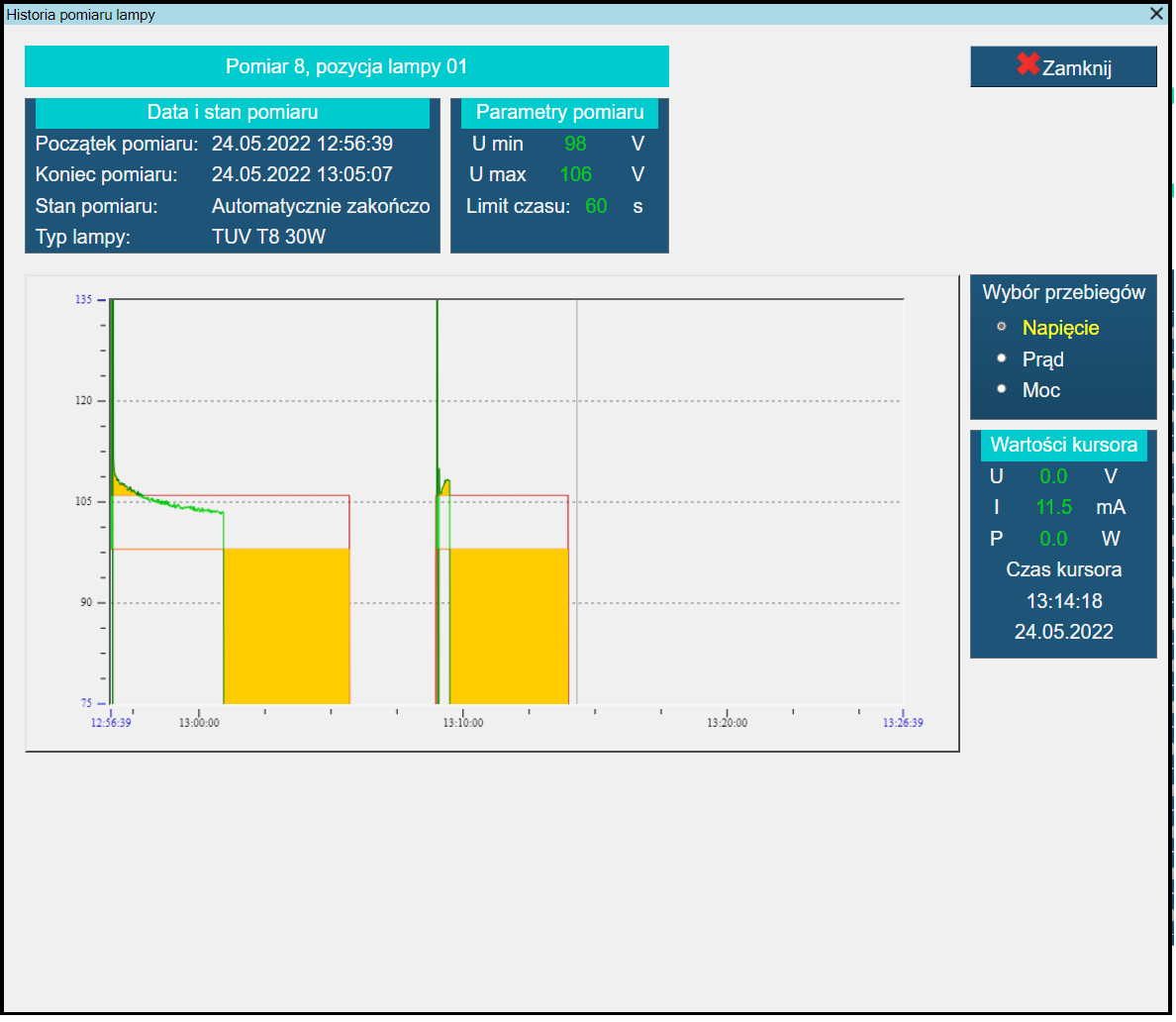

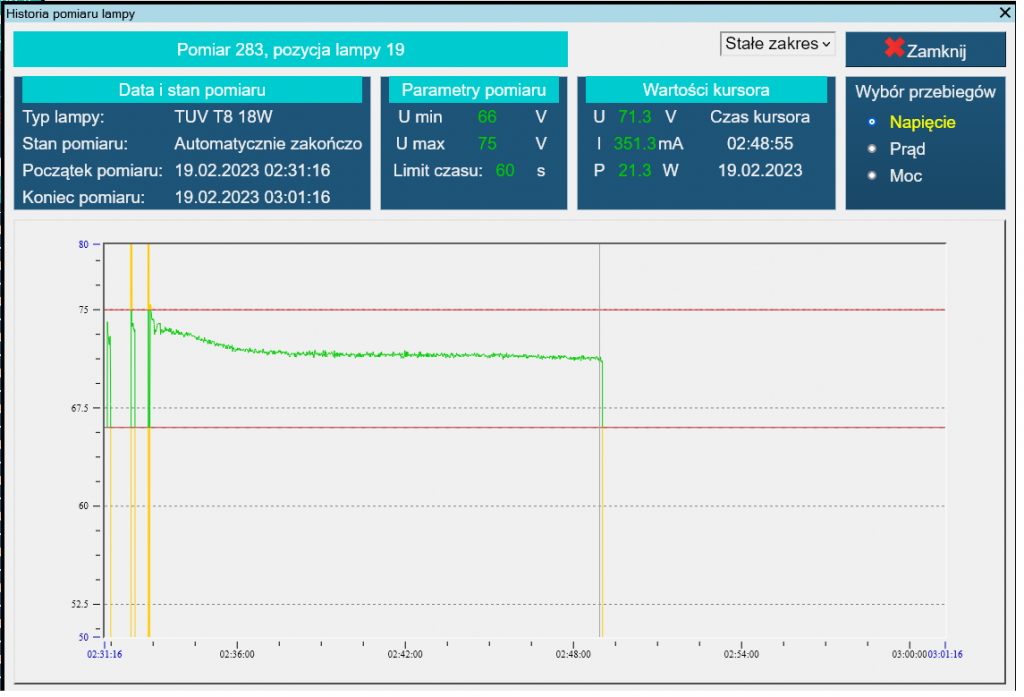

✅ review test history with the ability to filter correct or incorrect test results
