Non-Intrusive True RMS AC Current Measurement up to 600 A: True RMS AC current measurement in two ranges (60 A / 600 A), with current frequency measurement via clamp jaws (40 Hz to 1 kHz).
-
Smart AUTO SCAN Mode: Automatic detection of the measured parameter (voltage V, resistance R, continuity CON, current A) and selection of the optimal measurement range without manual switching.
-
Live Wire Detection (LIVE): Detection of live conductors (>100 V AC) using a single red test probe, with audible and visual indication.
-
Non-Contact Voltage Detection (NCV / EF): Visual and audible detection of AC voltage in walls and electrical outlets (detection threshold from approx. 50 V AC at 50/60 Hz).
-
Wide Capacitance and Resistance Measurement Ranges: Capacitance measurement up to 100 mF (100,000 µF) and resistance measurement up to 60 MΩ.
-
Built-in LED Flashlight and Display Backlight: Convenient operation in dark electrical cabinets thanks to an integrated LED illuminating the measurement area.
-
Compact Dimensions and Lightweight Design: Body width of only 64 mm, thickness of 22 mm and weight of approx. 100 g, making the instrument highly convenient for everyday use.

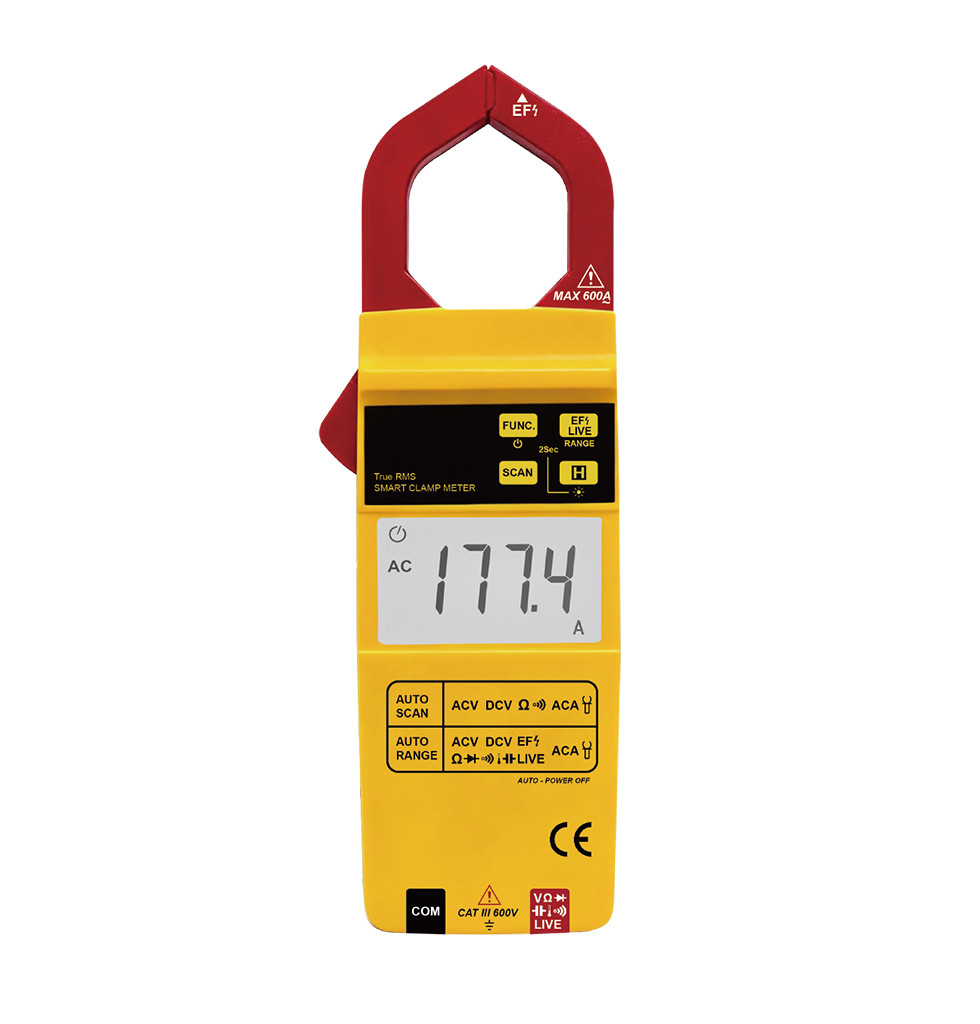

Smart True RMS digital AC clamp meter – VA340A
The portable VA340A Smart AC Clamp Meter is a modern, ultra-compact measuring instrument featuring a 5999-count (3⅚-digit) display, designed for fast and professional electrical measurements in industrial and building installations. The instrument features automatic measurement function and range detection (AUTO SCAN), clamp jaws for non-intrusive True RMS AC current measurement up to 600 A (including current frequency measurement via clamp jaws from 40 Hz to 1 kHz), AC/DC voltage measurement up to 600 V, resistance (up to 60 MΩ), capacitance (up to 100 mF), frequency (up to 1 MHz) and temperature (−200°C to +1200°C). It also features non-contact voltage detection (NCV / EF) and an advanced single-probe live wire detection function (LIVE). The instrument meets CAT III 600 V electrical safety requirements and is equipped with a built-in LED flashlight and a backlit LCD display. It is powered by two 1.5 V AAA batteries.
