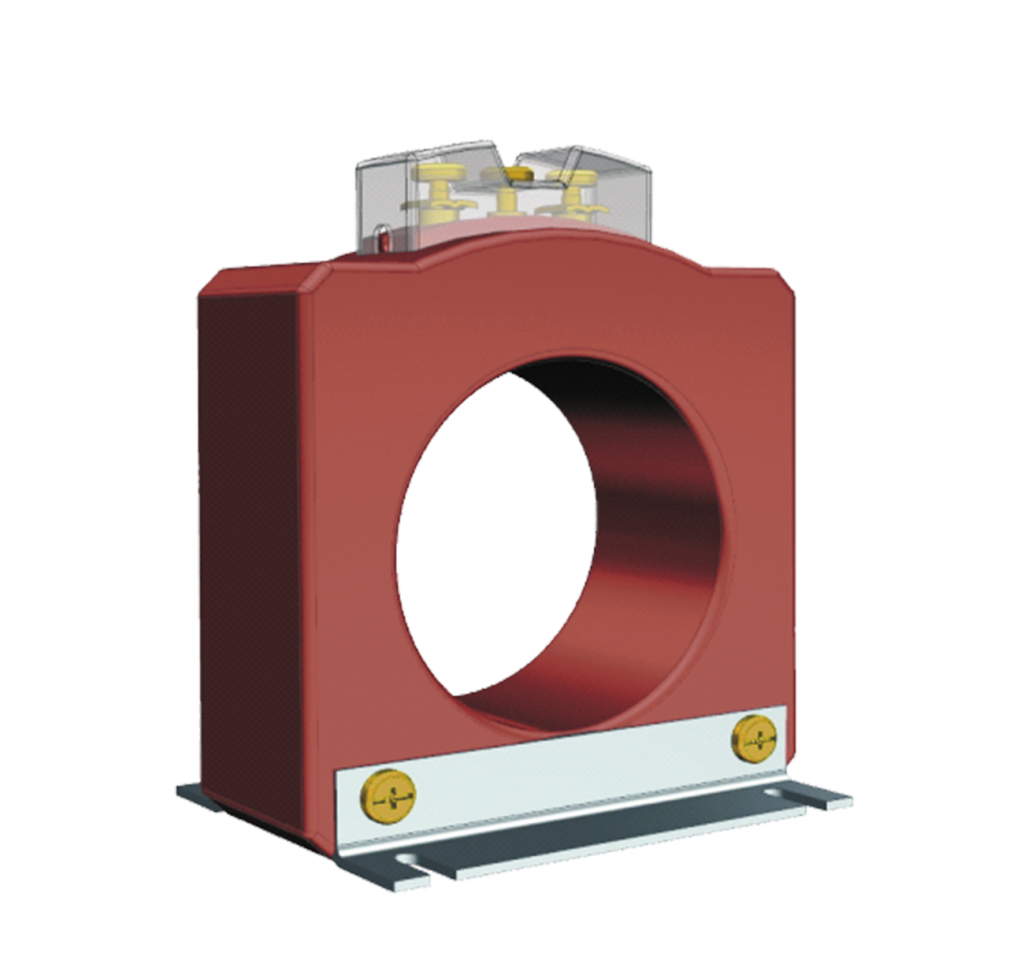

Resin cast CT's

LRC

Resin cast CTs of LRC series are molded with epoxy resin. This is a recommended solution for outdoor applications exposed to adverse environmental factors such as: extreme temperature, increased humidity, rain, dust, etc.

Preise / Anfrage

Zur Partnerzone

Features:

  • Primary winding flooded with an epoxy composition providing permanent resin insulation.
  • Wide current range from 6 0A up to 5000 A.
  • Maximum operating voltage 0.72kV.
  • Secondary currents 1A or 5A.
  • Transparent terminal cover.
  • Terminals of the secondary circuit are protected by a transparent cover that protects them against accidental contact.
  • A complete set of accessories in a standard enabling wall mounting of the transformer.

External dimension:  depends on version
