Energy Meter - NMID32

NMID32

NEU

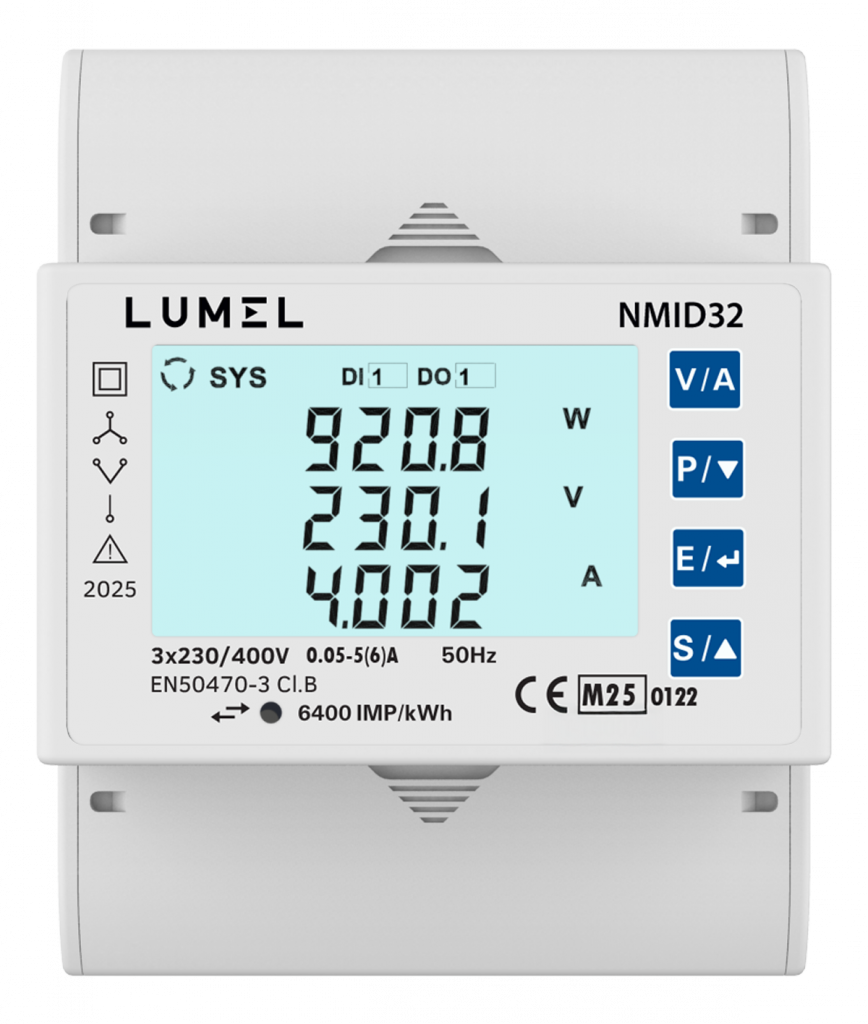

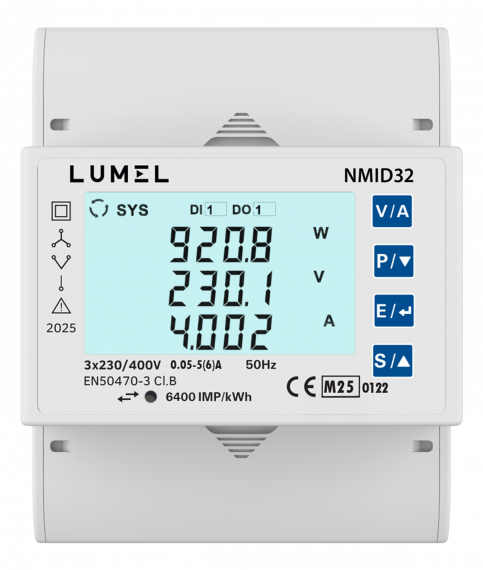

NMID32 is a modern Three Phase CT Connected AC Energy Meter. It is suitable for electrical parameter measurement and monitoring in 3 Phase 4 Wire, 3 Phase 3 Wire and 1 Phase 2 Wire Network.The meter has 2 SO output and Impulse LED for energy monitoring. It has inbuilt industry standard MODBUS RTU or MBUS for remote monitoring.

Preise / Anfrage

Zur Partnerzone

  • CT Connected Meter
  • On-Site Programable CT Ratios
  • Energy measurement as per IEC 62053-21,23
  • Bi - Directional Import & Export energy measurement
  • Accuracy Class B as per EN 50470-3 (Class 1 as per IEC 62053-21)
  • Two Pulse outputs configurable for Import/Export Energy measurement
  • Optional Tariff Input
  • RS 485 Modbus or MBUS communication protocol
  • Terminal Sealing Protection
  • Laser Marking (for product information)
