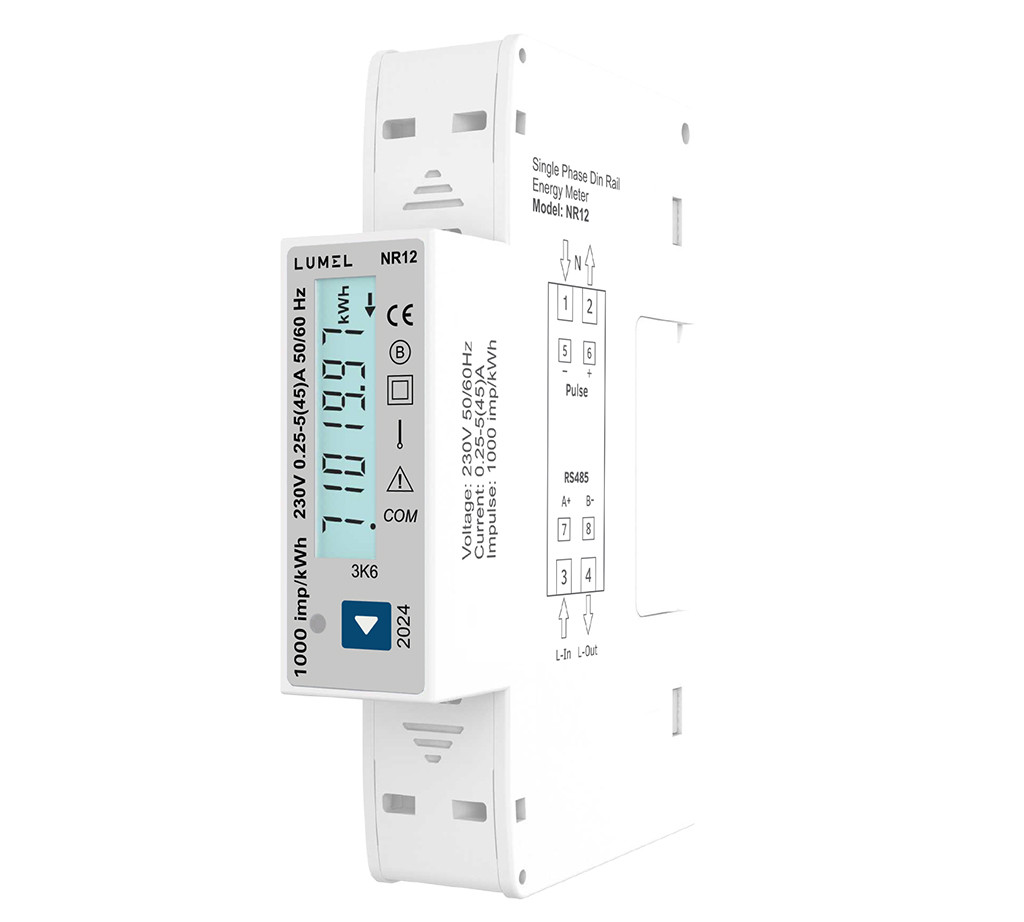

The NR12 is produced to the highest quality and utilizes the latest microprocessor and technology. It has a blue backlit display for different measuring parameters. With built-in 2 pulsed outputs and RS485 Modbus RTU it is fully compatible for integration with BMS and remote monitoring systems.
- Active energy in Class B accuracy (acc. to EN50470-3)
- Bi-directional measurement IMPORT & EXPORT
- 100A direct connection
- Two pulse outputs
- Two Tariff Counters for energy accumulation selectable via Digital Input or MODBUS
- RS-485 Modbus
- DIN rail mounting 35 mm
Parameters
- Phase to Neutral voltage
- Frequency
- Current
- Current Max Demand
- kW, kVA & kVAr
- kW, kVA & kVAr Max Demand
- Power Factor
- Import kWh
- Export kWh
- Import kVarh
- Export kVArh
- Total kWh (Active Energy)
- Total kVarh (Reactive Energy)
- Total kVA (Apparent Energy)
